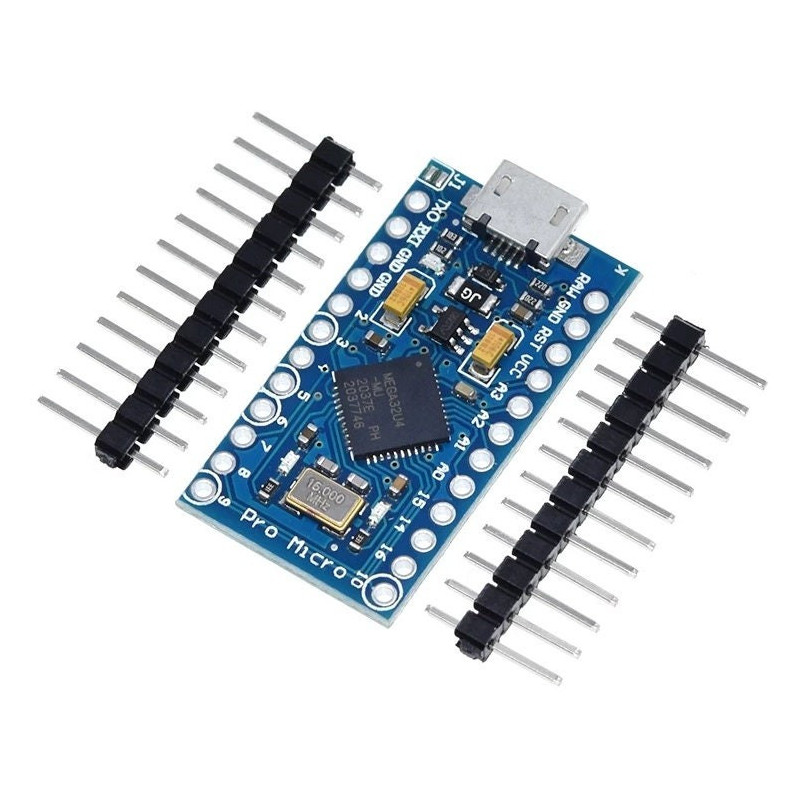

The Arduino Pro Micro board stands out as the tool of choice for prototyping and robotics, thanks in particular to its small size. Its compact format saves considerable space, while providing users with an impressive array of functions.

Features

• Equipped with a 16MHz ATMEGA32U4 controller, an undeniable asset for your most ambitious projects. Its high operating frequency guarantees optimum performance and flawless responsiveness.

• The board also features multiple inputs and outputs, both analog and digital, to cover a wide range of connectivity needs. More specifically, it features 4 analog inputs/outputs, with 10-bit resolution, and 12 digital inputs/outputs, 5 of which can generate PWM (pulse width modulation) signals.

• Programming the Arduino Pro Micro board is simplified by the presence of a USB-C port. This means you can easily program it via Arduino software, making it all the more accessible and easy to use.

• On the power supply side, it can operate with a voltage of 5V and a recommended supply voltage of between 7 and 12V. It can tolerate a maximum supply voltage of 6 to 20V. As for inputs/outputs, they can handle a maximum current of 40mA. The 3.3V can handle a maximum current of 50mA.

Conclusion

Finally, the Arduino Pro Micro board offers 32KB of flash storage, 4KB of which is dedicated to the bootloader. It also has 2.5KB of SRAM.

Whether you're a robotics enthusiast, a prototyping professional or simply curious about technology, the Arduino Pro Micro board has been designed to meet your requirements, whatever they may be.

Details

• 4.13 g (with chip)
• 33.6 mm x 18.3 mm
